logic: fast 8bit ram
ID: #2886Steam: 3244453697
Subscribers
51
Favourites
Steam
0
Site
0
Views
Steam
64
Site
0
Steam rating
unrated
Site rating
unrated
0
site: unrated
0 up · 0 down
Tags
Vote on tags
Community tags appear publicly at +3 net votes.
Suggest another tag

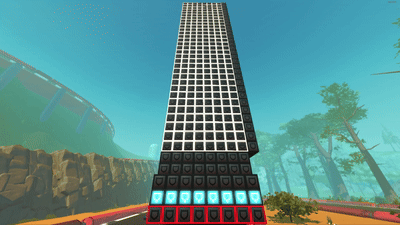

Red logic gates is write address, blue is write value. Red and blue has to take a 1 tic input at the same time to write the value, and it can write at 40Hz. Pink is read address, and teal is read value. Reading can also be done at 40Hz, but doesn't have to be a 1 tic input. It has 255bytes (0.25kb), and unused storage can simply be cut off physically. All the white gates are actual memory bits. It has 11316 logic gates, and 27094 connections.
