Ring Counter
by Yushiri

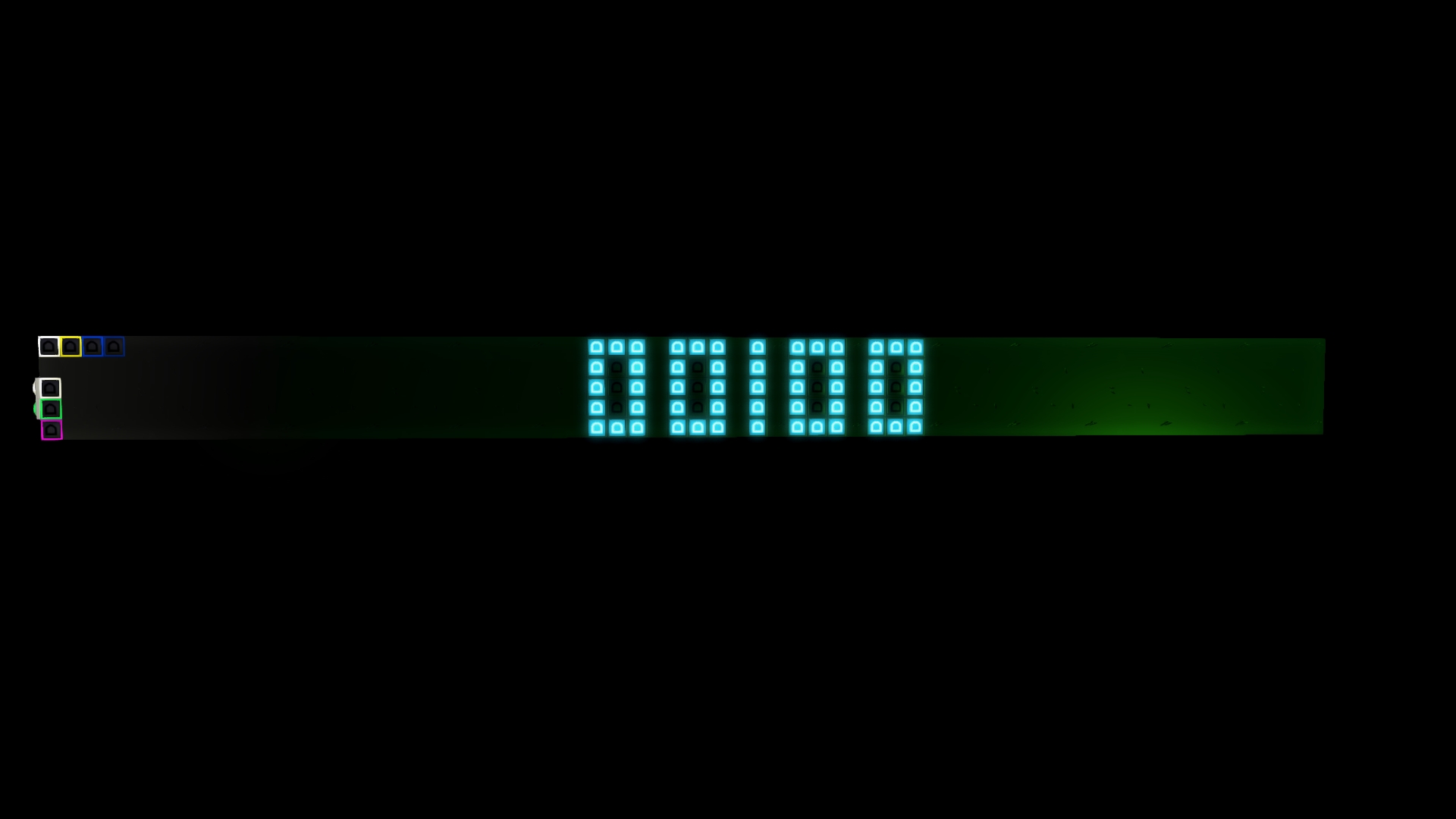

Ring Counter: Counter of ticks of variable signals, or counter of ticks on | off. [hr[/hr Inputs: Pink gate - Input; Green gate - Start of counting; White gate (bottom) - Reset of counters; [hr[/hr Outputs: White gate (top) - Ready to count indicator; Yellow gate - Processing indicator; Blue gates - Indicator that one of the counters is on; [hr[/hr The counter is built on a standard signal structure converter. The display with pixel memory shows the result after updating the main hidden display to immediately show the result, without artifacts. The maximum signal values are limited to 32, if the limit is exceeded, the counter will return an error. [hr[/hr Easier to use Automatic version [hr[/hr Other buildings: - Logical Oscilloscope - Simple Frequency Meter - Logic Potentiometer
